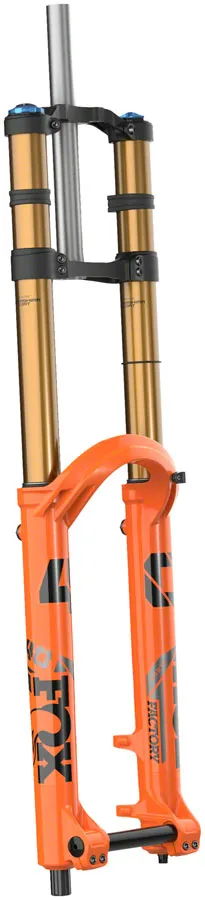

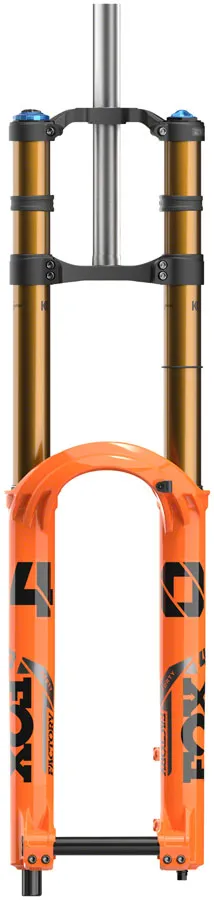

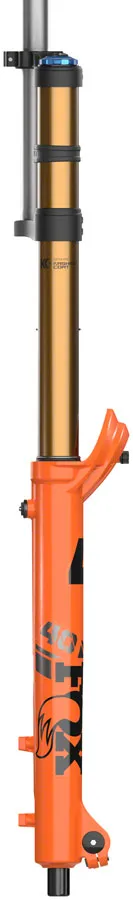

Category leading Downhill race fork

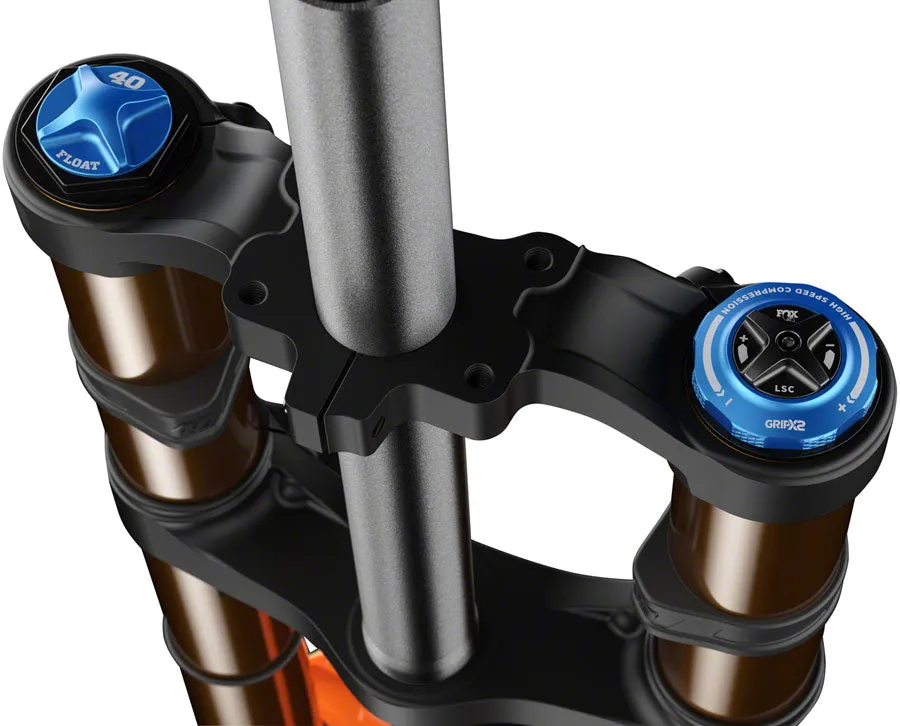

Grip X2 damper with high speed compression, low speed compression, high speed rebound, and low speed rebound controls

Lower leg arch shaves every possible gram without compromising stiffness

Lower leg internal bypass channels offer more usable travel by increasing air volume within the lower legs

Lower leg bleeders allow for atmospheric pressure equalization providing more usable travel and better small bump sensitivity

Factory Series with slippery smooth, ultra-durable Kashima coating

EVOL air spring with enlarged negative air spring to assist with mid-stroke support

180mm to 230mm rotor compatible post mount

Floating axle precisely aligns the dropout surface to the front hub end caps eliminating unwanted friction between the upper and lower fork legs

• TECH SPECS

model	40, F-S, Grip X2, HSC, LSC, HSR, LSR
wheel size	29"
steer (stem/race)	tapered (28.6/40mm)
offset	52mm
travel	203mm
spring type	Float Evol air
brake mount	disc only (PM-203)
dropout	20x110mm TA
weight	-
color	shiny orange
